Web Viewer Settings Panel

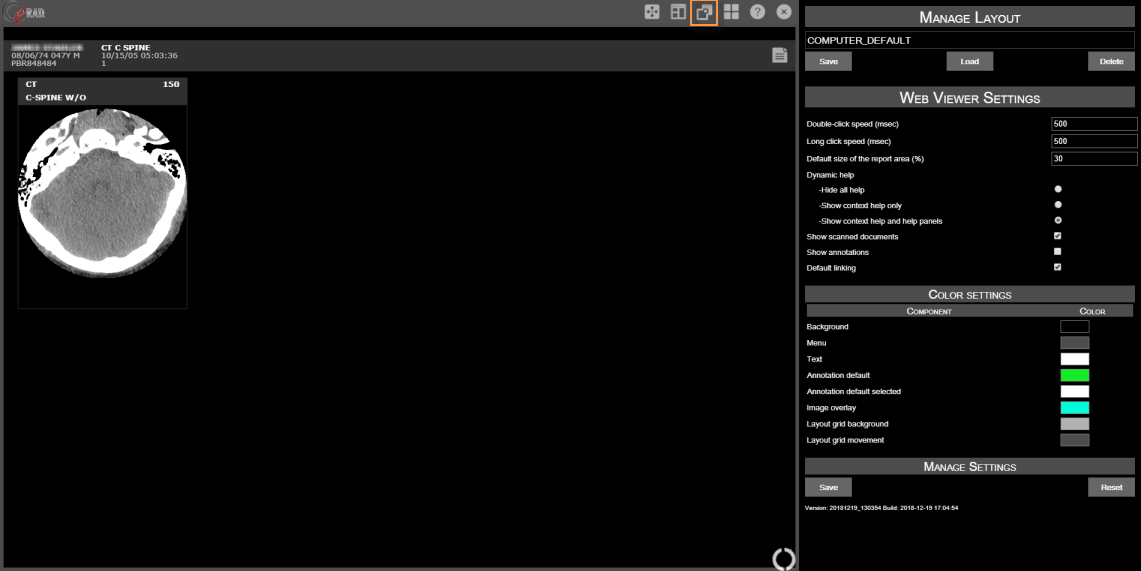

To change the web viewer settings, select the Toggle Settings Panel   icon.



Setting	Default	Description
Double-click speed	500 msec	Multiple clicks within the defined time period are recorded as a doubleclick action.
Long click speed	500 msec
Default size of the report area	30%	The percentage of the screen allocated to the report when displayed
Dynamic help		Hide all help
		Show context help only
		Show context help and help panels (default)
Show scanned document	Enabled	Include objects tagged as scanned documents in the web viewer
Show annotations	Disabled	Include annotations
Default linking	Enabled	Include linked studies
Vertical thumbnail panel	Disabled	Dock thumbnail panel to left of web viewer.  When disabled, thumbnail panel will be displayed horizontally when enabled.



Creating and Managing Layouts

Users are able to create and manage layouts from the Settings Panel.  Frame layouts can also be created and saved under a new customized name.

To change a grid layout select the Change Window Layout   icon. Dragging the mouse from the top left corner down will allow the user to draw or define a generic layout for the series frames.

To create a custom layout:

1. Select the Toggle Settings Panel icon
2. Click in the layout text area in the Manage Layout area
3. Enter a name for the new layout
4. Select Save

The new layout will now appear when the Toggle Layout   icon is selected.

To change settings in a created layout:

1. Select the Toggle Settings Panel icon
2. Select the layout from the dropdown in the Manage Layout area
3. Make all necessary changes
4. Select the Save tab

To load a layout in the viewer:

1. Select the Toggle Settings Panel icon
2. Select the layout from the dropdown in the Manage Layout area
3. Select the Load tab



Color Settings

Color settings are also able to be changed from the Settings Panel.

To change a color setting:

1. Select the color to change

2. Click anywhere on the color grid to select a color

3. Click the Save icon

Component	Default Color
Background	R:0 G:0 B:0
Menus	R:76 G:76 B:76
Text	R:255 G:255 B:255
Annotation Default	R:0 G:255 B:216
Annotation default selected	R:255 G:255 B:255
Image overlay	R:0 G:255 B:216
Layout grid background	R:178 G:178 B:178
Layout grid movement	R:76 G:76 B:76



Manage Settings

Select the Save to apply all changes or Reset to start over.
